DC Distribution Circuit Breaker Rack Mount Unit
Two models available
Our Range of DC Distributions units are designed to distribute loads to sensitive electronic equipment. They come with a range of features and are assembled in our Perth workshop.

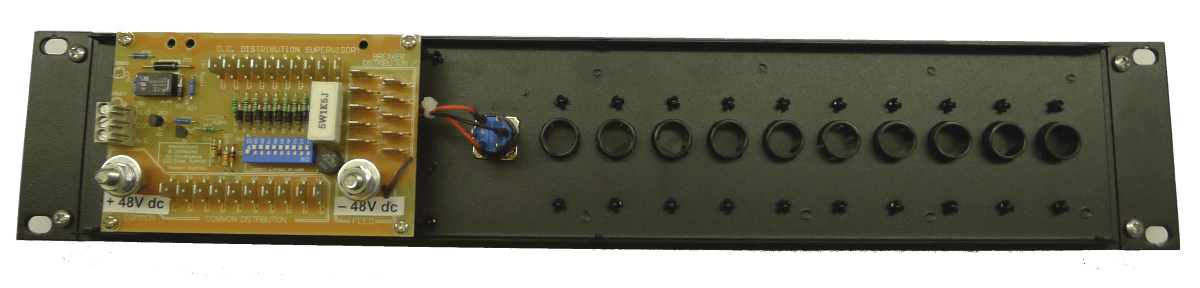

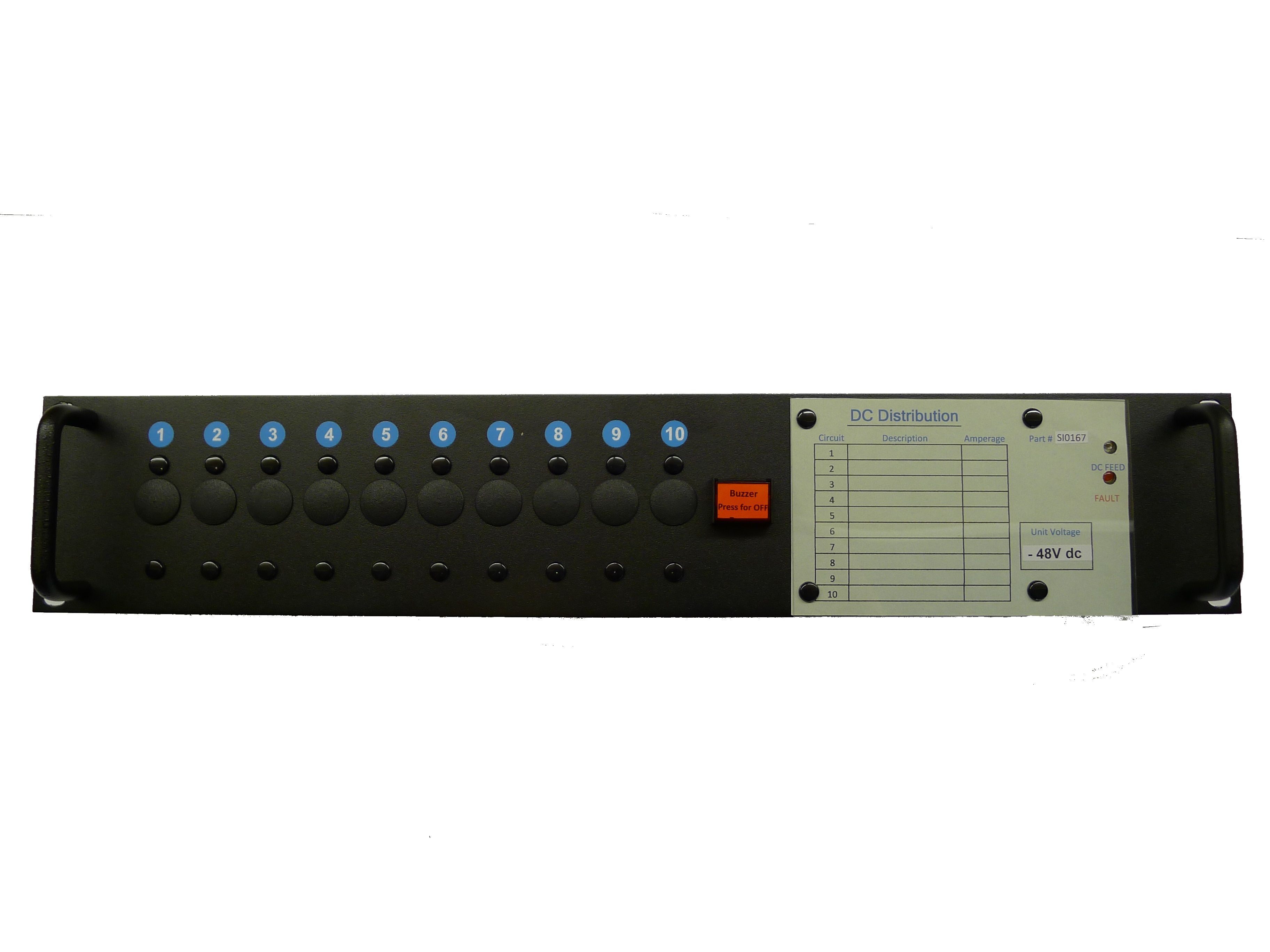

Model SI0172 - 19" Rack mount 2U DC Power Distribution Panel. The single bus bar provides a maximum rating of 100Amp and accommodates up to 10 circuit breakers

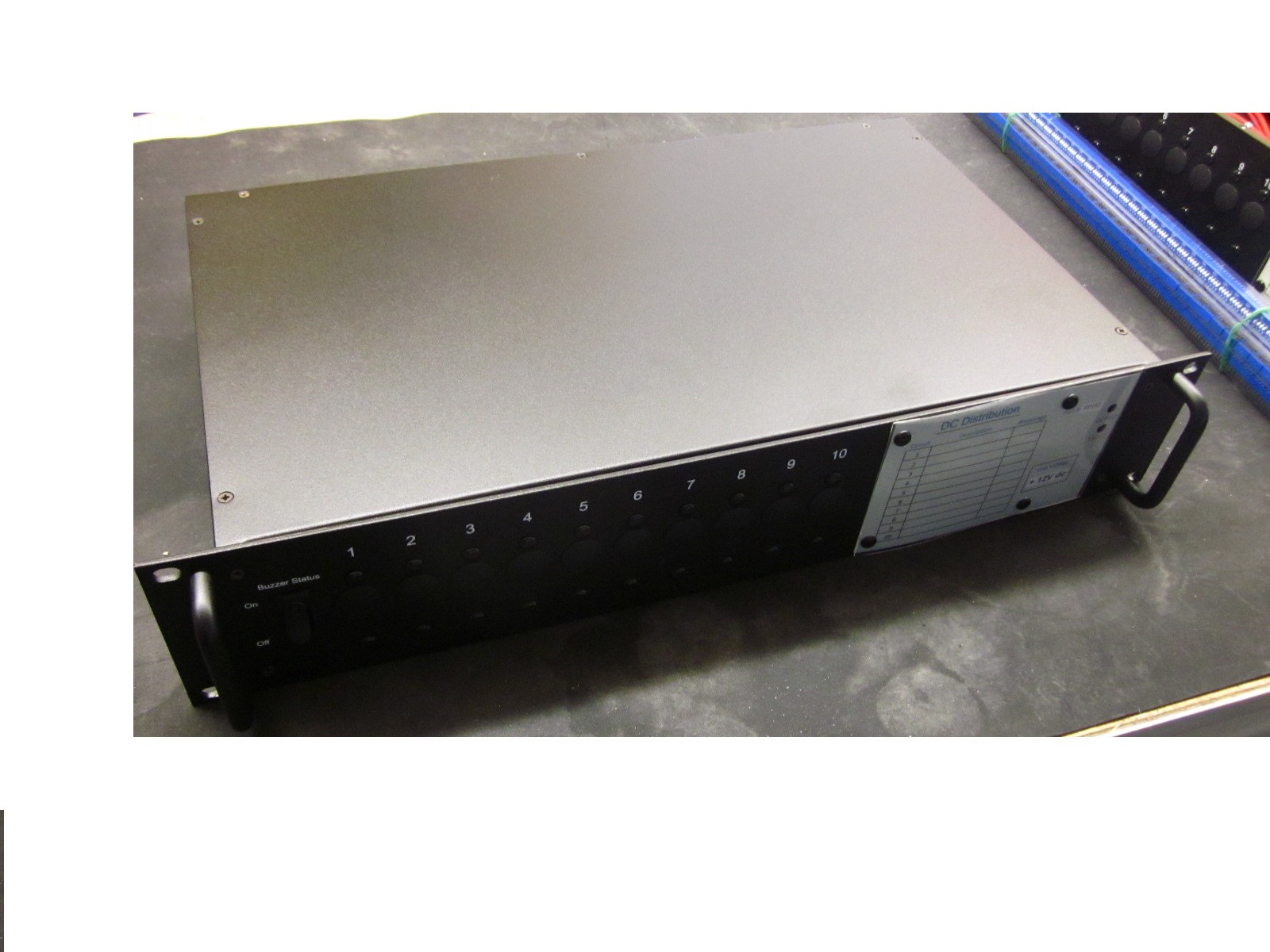

Model SI0192 - 19" Rack mount 2U DC Power Distribution Enclosure. The single bus bar provides a maximum rating of 100Amp and accommodates up to 10 circuit breakers
Suitable for any 48V, 24V or 12V DC Power Distribution System requirements. The unit can be modified to distribute postive or negative loads.

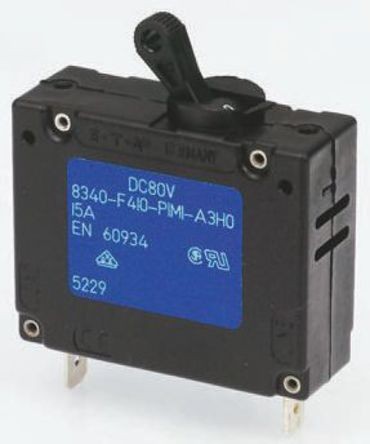

Models compatible with thermal magnetic circuit breakers. Available circuit breakers are 2.5A, 5A, 8A 10A, 15A, 20A, 25A
Easily tailored to suit your needs, only have two pieces of equipment that require a DC load? Simply install two circuit breaker and leave the blanking plugs in the other positions, no need to over invest in circuit breakers that may never be used. Want to add a piece of equipment in future? Simply remove the blanking plugs, wire up the circuit breaker and you're good to go.
Units are supplied without circuit breakers, but all necessary wiring and instructions are supplied. Circuit breakers can be purchased through us or you may supply your own.
